SKU: YAR204-2FW/VA201-SKF

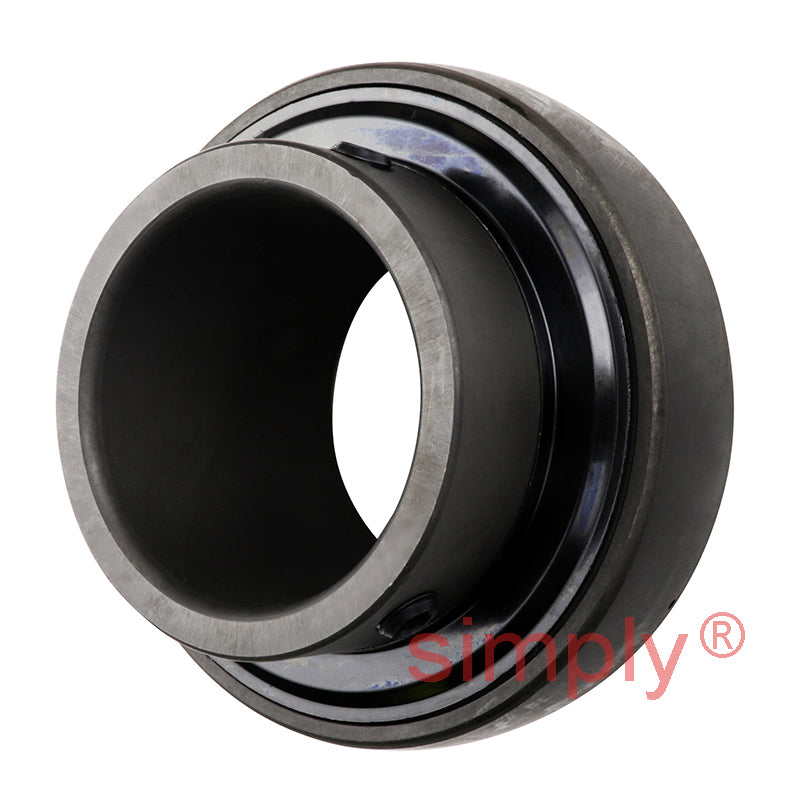

SKF YAR2042FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 20x47x31mm
SKF YAR2042FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 20x47x31mm
Regular price
€105,92
ex VAT
Regular price
Sale price
€105,92
ex VAT
In stock
Price Break
10+
€94,27
19+
€88,97
29+
€87,91
39+
€86,85
49+
€85,80
74+
€84,74
99+
€79,44
199+
€78,38
249+
€77,32
499+
€76,26
999+
€74,14
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 31mm |
| C | 14mm |
| d1 | 28.2mm |
| s1 | 18.3mm |
| r1r2 min | 0.6mm |
| Dynamic load C | 12.7 |
| Static load Co | 6.55 kN |
| Weight | 0.14 kg |
