SKU: YAR204-2FW/VA228-SKF

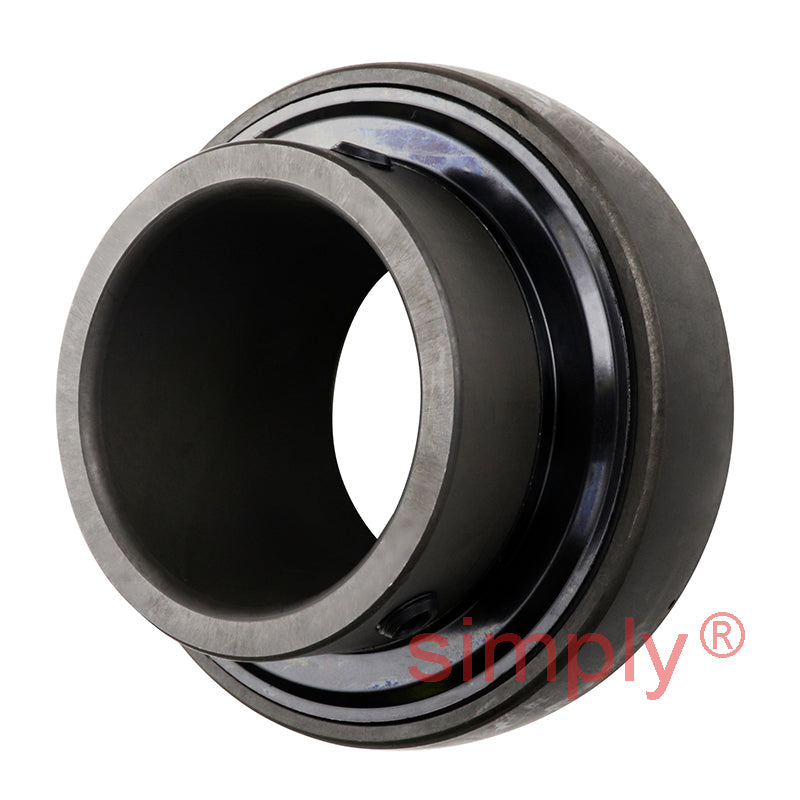

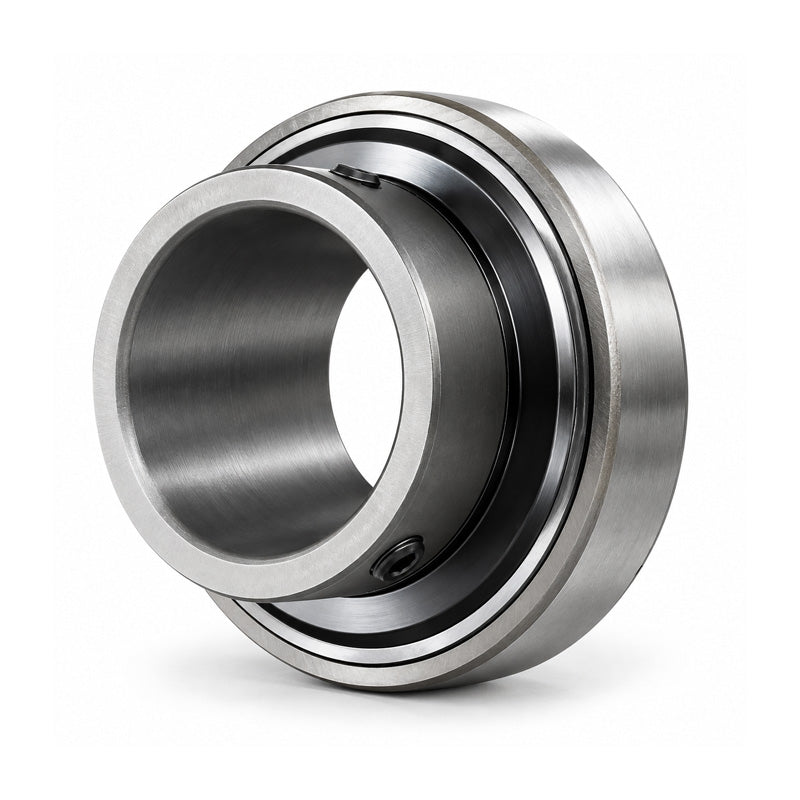

SKF YAR2042FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 20x47x31mm
SKF YAR2042FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 20x47x31mm
Regular price
€175,99
ex VAT
Regular price
Sale price
€175,99
ex VAT
In stock
Price Break
10+
€156,63
19+
€147,83
29+
€146,07
39+
€144,31
49+
€142,55
74+
€140,79
99+
€131,99
199+
€130,23
249+
€128,47
499+
€126,71
999+
€123,19
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 31mm |
| C | 14mm |
| d1 | 28.2mm |
| s1 | 18.3mm |
| r1r2 min | 0.6mm |
| Dynamic load C | 12.7 |
| Static load Co | 6.55 kN |
| Weight | 0.14 kg |
