SKU: YAR206-103-2FW/VA228-SKF

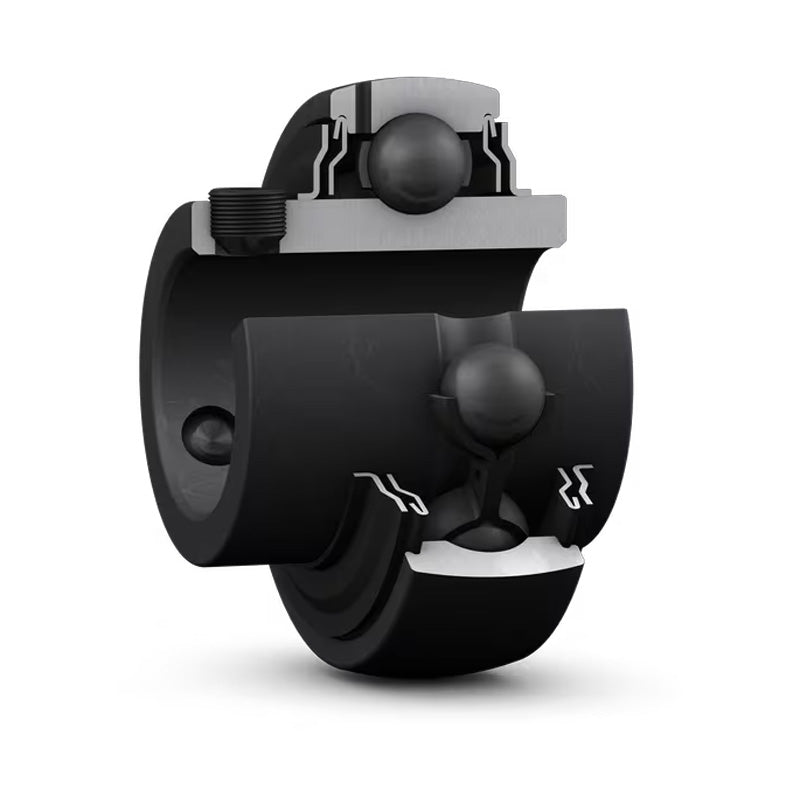

SKF YAR2061032FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/16 inch shaft

Name: SKF YAR2061032FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/16 inch shaft
Brand: SKF
SKU: YAR206-103-2FW/VA228-SKF
Price: 184.04 EUR
Availability: InStock

€184,04 ex VAT

Sale Sold out

In stock

Price Break

10+ €140,17

19+ €132,30

29+ €130,72

39+ €129,15

49+ €127,57

74+ €126,00

99+ €118,12

199+ €116,55

249+ €114,97

499+ €113,40

999+ €110,25

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 30.16mm = 1.187 (1-3/16) inch
Temperature Range:: High Temp

Technical

d	1-3/16 inch
D	62mm
B	38.1mm
C	18mm
d1	39.7mm
s1	22.2mm
r1r2 min	0.6mm
Dynamic load C	19.5 kN
Static load Co	11.2 kN
Weight	0.31 kg
