SKU: YAR207-104-2FW/VA228-SKF

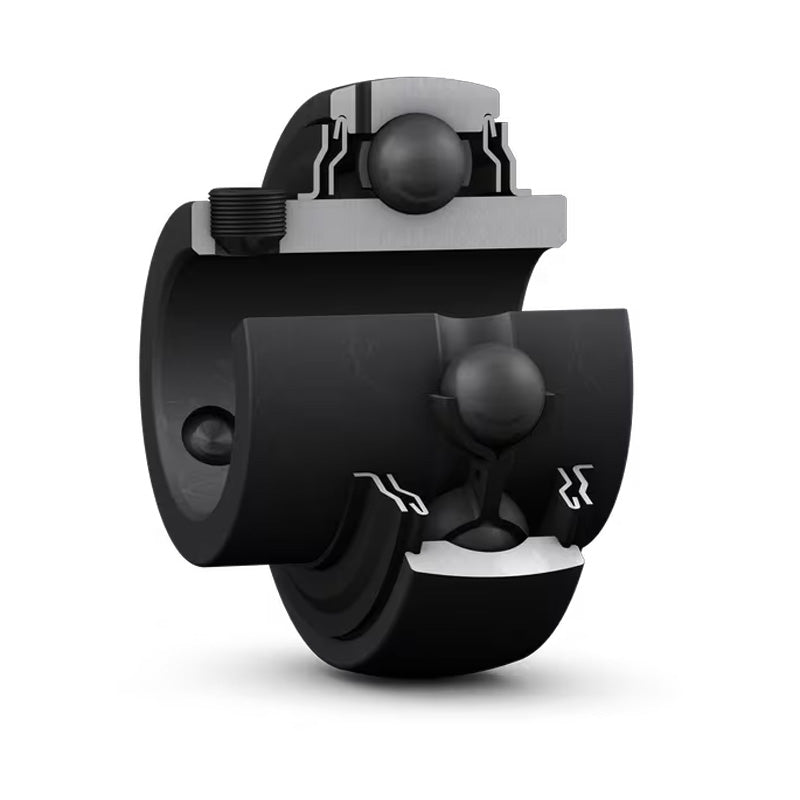

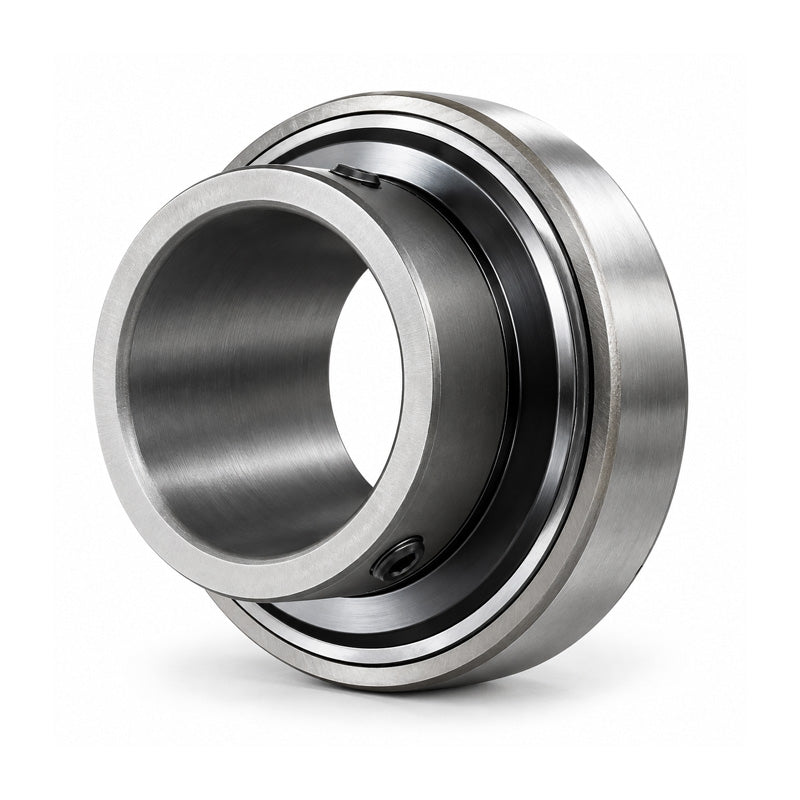

SKF YAR2071042FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-1/4 inch shaft

Name: SKF YAR2071042FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-1/4 inch shaft
Brand: SKF
SKU: YAR207-104-2FW/VA228-SKF
Price: 244.52 EUR
Availability: InStock

€244,52 ex VAT

Sale Sold out

In stock

Price Break

10+ €186,22

19+ €175,76

29+ €173,67

39+ €171,58

49+ €169,49

74+ €167,39

99+ €156,93

199+ €154,84

249+ €152,75

499+ €150,65

999+ €146,47

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 31.75mm = 1.25 (1-1/4) inch
Temperature Range:: High Temp

Technical

d	1-1/4 inch
D	72mm
B	42.9mm
C	19mm
d1	46.1mm
s1	25.4mm
r1r2 min	1mm
Dynamic load C	25.5 kN
Static load Co	15.3 kN
Weight	0.52 kg
