SKU: YAR209-112-2FW/VA228-SKF

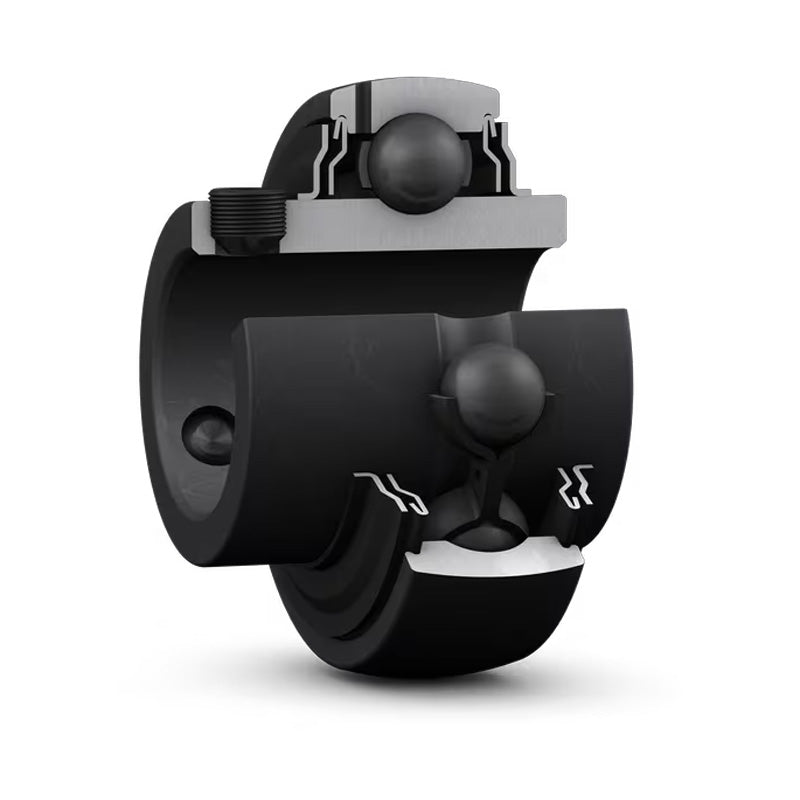

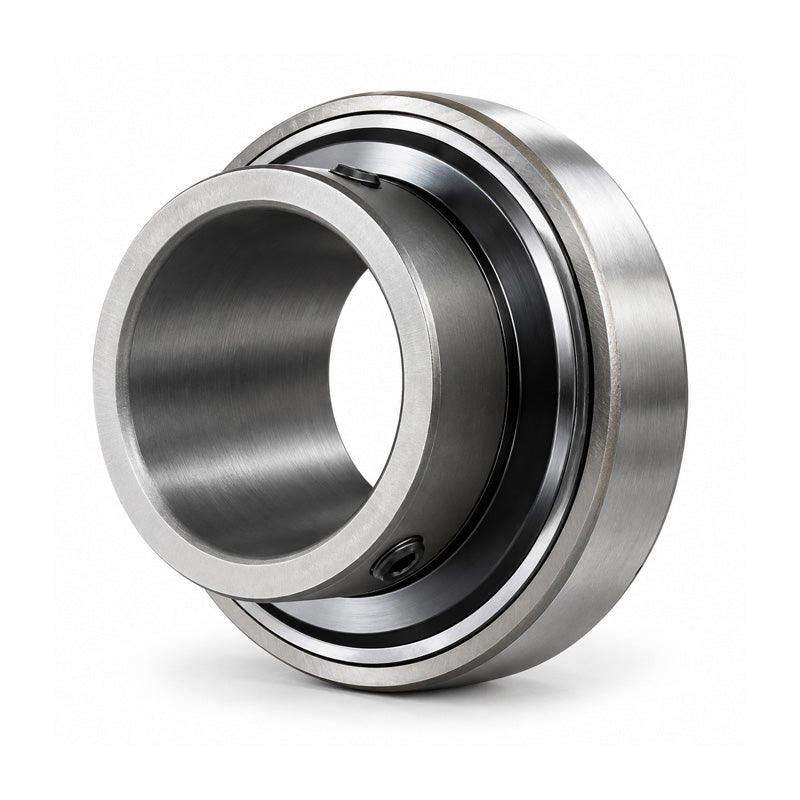

SKF YAR2091122FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/4 inch shaft
SKF YAR2091122FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/4 inch shaft
Regular price
€247,50
ex VAT
Regular price
Sale price
€247,50
ex VAT
In stock
Price Break
10+
€220,28
19+
€207,90
29+
€205,43
39+
€202,95
49+
€200,48
74+
€198,00
99+
€185,63
199+
€183,15
249+
€180,68
499+
€178,20
999+
€173,25
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| D | 85mm |
| B | 49.2mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 30.2mm |
| r1r2 min | 1mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 0.62 kg |
