SKU: YAR212-2FW/VA201-SKF

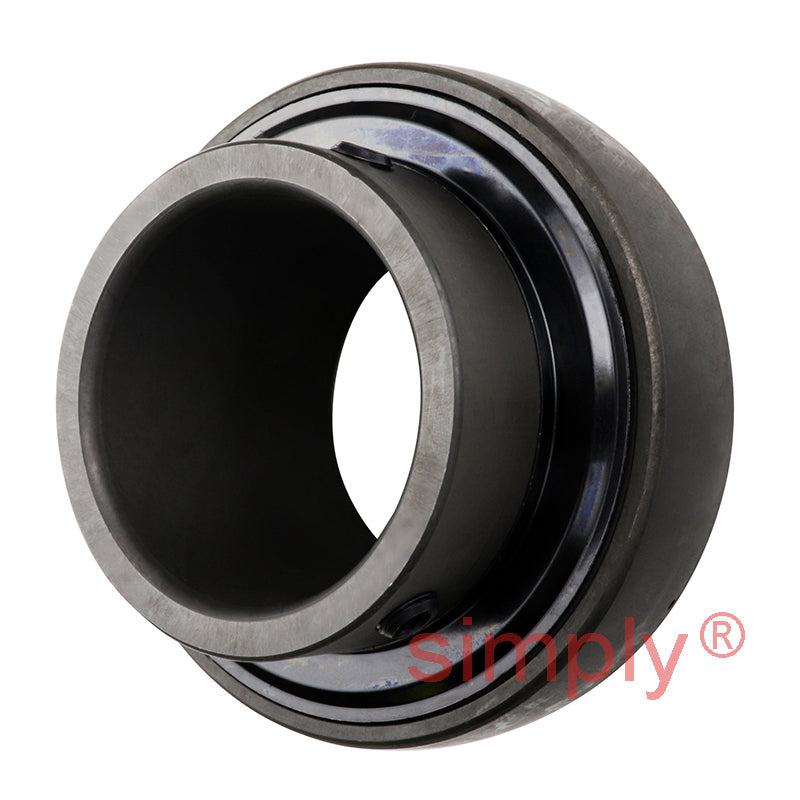

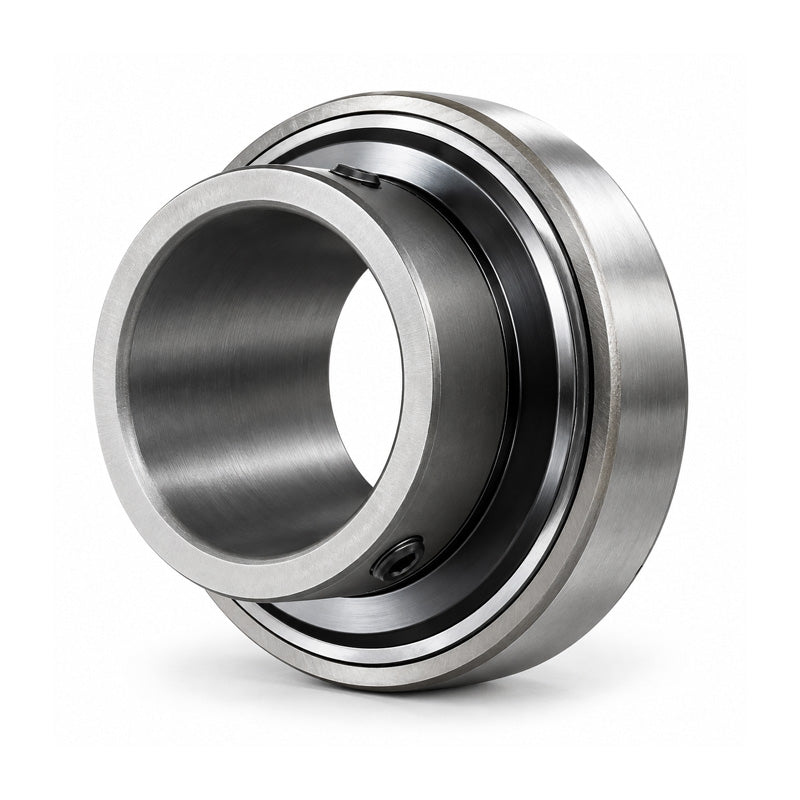

SKF YAR2122FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 60x110x65.1mm
SKF YAR2122FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 60x110x65.1mm
Regular price
€348,50
ex VAT
Regular price
Sale price
€348,50
ex VAT
In stock
Price Break
10+
€265,41
19+
€250,50
29+
€247,52
39+
€244,54
49+
€241,55
74+
€238,57
99+
€223,66
199+
€220,68
249+
€217,70
499+
€214,71
999+
€208,75
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 65.1mm |
| C | 26mm |
| d1 | 75.6mm |
| s1 | 39.7mm |
| r1r2 min | 1.5mm |
| Dynamic load C | 52.7 |
| Static load Co | 36 kN |
| Weight | 1.3 kg |
