SKU: YAT211-200-SKF
SKF YAT211-200 Grub Screw Type Bearing Insert 2 inch Bore 100mm Outside Diameter - Allow 2-3 Days
SKF YAT211-200 Grub Screw Type Bearing Insert 2 inch Bore 100mm Outside Diameter - Allow 2-3 Days
Regular price
€103,54
ex VAT
Regular price
Sale price
€103,54
ex VAT
In stock
Price Break
10+
€87,71
20+
€84,17
30+
€82,40
40+
€79,74
50+
€77,97
75+
€73,54
100+
€62,02
200+
€0,00
250+
€0,00
500+
€0,00
1000+
€0,00
Description
Description
|

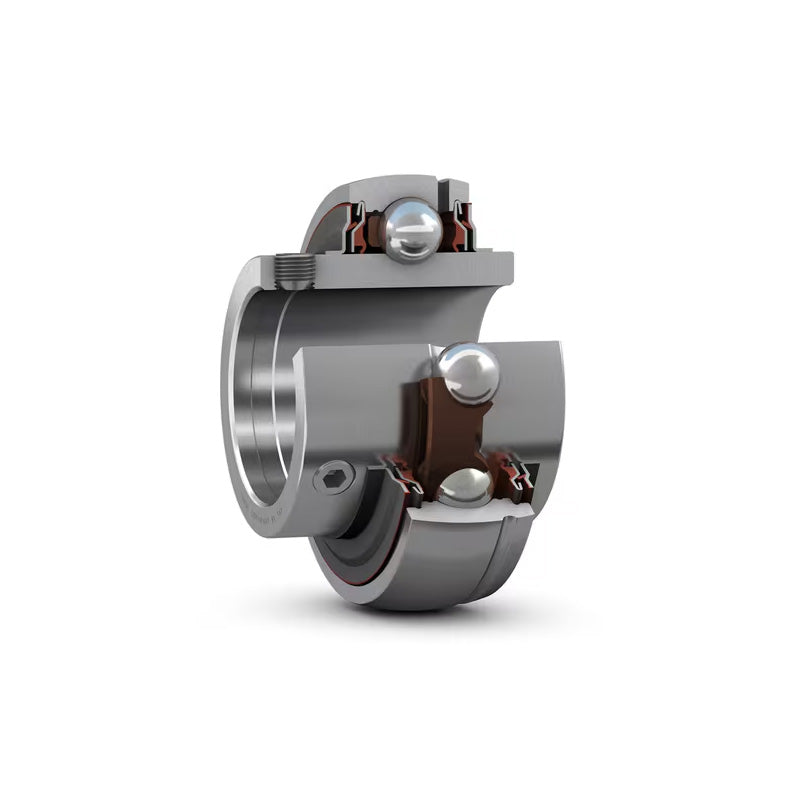

SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 100mm
- Style:
- YAT
Technical
Technical
| d | 2 inch |
|---|---|
| D | 100mm |
| B | 45mm |
| C | 25mm |
| d1 | 69.1mm |
| s1 | 32.5mm |
| r1r2 min | 1mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 1.05 kg |
