SKU: YT.1212

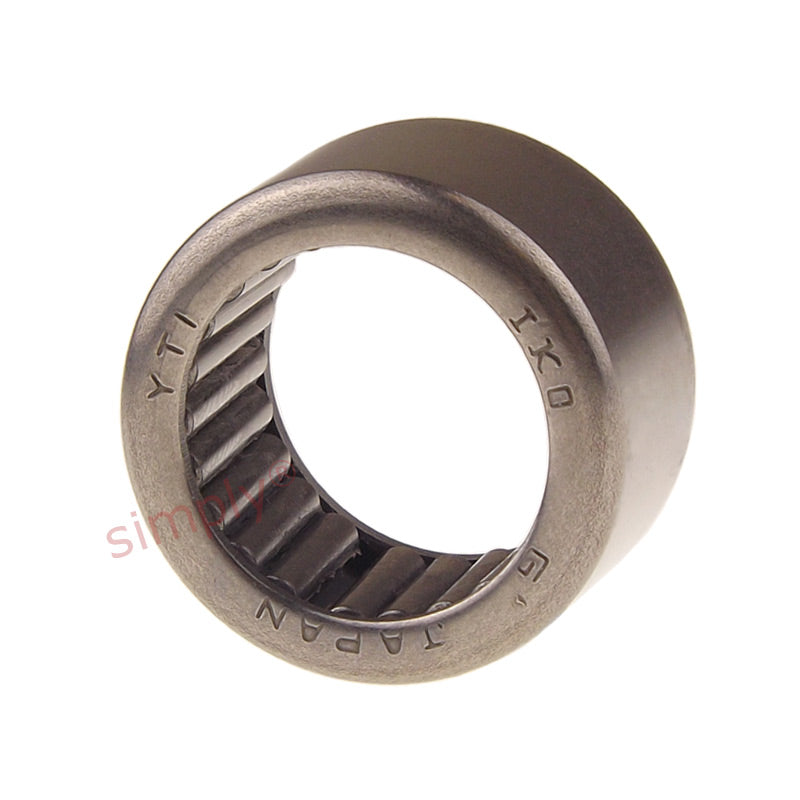

IKO YT1212 Drawn Cup Open End Type Full Complement Needle Roller Bearing 12x19x12mm

Name: IKO YT1212 Drawn Cup Open End Type Full Complement Needle Roller Bearing 12x19x12mm
Brand: IKO
SKU: YT.1212
Price: 8.40 EUR
Availability: InStock

€8,40 ex VAT

Sale Sold out

In stock

Price Break

10+ €7,48

19+ €7,06

29+ €6,97

39+ €6,89

49+ €6,80

74+ €6,72

99+ €6,30

199+ €6,22

249+ €6,13

499+ €6,05

999+ €5,88

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

YT and YTL Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.

Brand / Quality:: IKO - High Quality
Inside Diameter:: 12mm
Outside Diameter:: 19mm
Width:: 12mm

Technical

Fw	12mm
D	19mm
C	12mm
Dynamic load	11800 N
Static load	15200 N
Inner ring	IRT812
Weight	12.8 g
