SKU: ZKLF.3080.2RS.PE

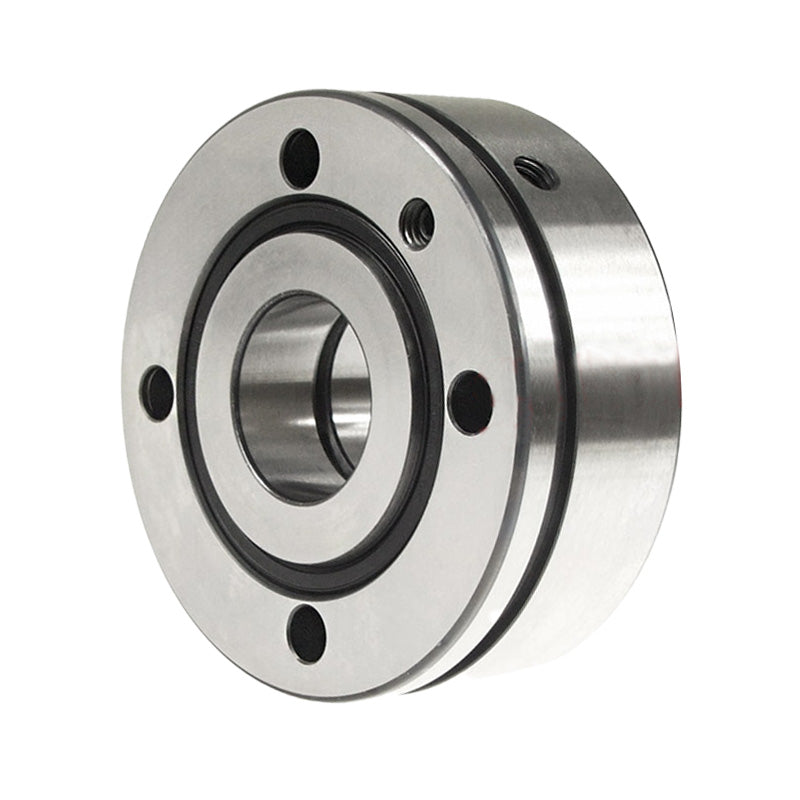

INA ZKLF30802RSPE Rubber Sealed Double Row Axial Angular Contact Ball Bearing 30x80x28mm Allow 2-3 Days
INA ZKLF30802RSPE Rubber Sealed Double Row Axial Angular Contact Ball Bearing 30x80x28mm Allow 2-3 Days
Regular price
€411,23
ex VAT
Regular price
Sale price
€411,23
ex VAT
In stock
Price Break
4+
€313,19
9+
€295,60
19+
€292,08
29+
€288,56
39+
€285,04
49+
€281,52
59+
€263,93
69+
€260,41
79+
€256,89
89+
€253,37
99+
€246,33
Description
Description
|
INA ZKLF Series Angular Contact Bearings: Bearings of series ZKLF are double row axial angular contact ball bearings with an outer ring suitable for flange mounting and integral seals. These bearings are predominantly used for the bearing arrangements of screw drives and are an extremely economical solution for criteria such as a simple adjacent construction and low fitting costs. The larger sizes of these bearings – with a bore diameter of 60 mm to 100 mm are particularly suitable for bearing arrangements of large threaded spindles or rotating threaded nuts, in other words screw drives with a static spindle. Double row axial angular contact ball bearings of series ZKLF...2RS have two rows of balls with a contact angle of 60 Degrees. The bearings are sealed on both sides with rubber seals and are greased for life for the majority of applications. Additional seals in the adjacent construction are not required. In most applications, the initial greasing is sufficient for the whole operating life. If necessary, re lubrication can be carried out via a threaded connector from a central lubrication system on the flange side or by means of a lubrication groove and lubrication hole via the adjacent construction. Axial angular contact ball bearings ZKLF..-2RS-PE correspond to series ZKLF but have a run out tolerance within P5 to DIN 620, less stringent diameter tolerances and the suffix PE. They are used where a lower positional accuracy is acceptable. As a result, the adjacent construction does not need to be as accurate with these bearings. Benefits: Cost effective solution, re-lubricatable, bolt in place, low down time |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 80mm
- Width:
- 28mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 30mm (Tolerance -0.01) |
|---|---|
| D | 80mm (Tolerance -0.013) |
| B | 28mm (Tolerance -0.25) |
| 1) Extraction Slot | Yes |
| b | 3mm |
| Da max | 53mm |
| d1 | 45.5mm |
| d2 | 6.8mm |
| da min | 40mm |
| I | 19mm |
| J | 63mm |
| r1 min | 0.6mm |
| r min | 0.3mm |
| t | 6 X 60° |
| m | 0.78 kg |
| Basic dynamic load rating, axial | 29000 N |
| Basic static load rating, axial | 64000 N |
| nG Fett | 2200 rpm |
| MRL | 0.5 Nm |
| caL | 850 Nm |
| ckL | 300 Nm/mrad |
| Mm | 0.73 kg x cm^2 |
| Axial runout | 5 micrometres |
| Qty fix screws | 6 x M6 |
| Locknut | ZM30, AM30 |
| MA | 32 Nm |
| Axial Preload | 10451 N |
